Tried the EXE and the manual root commands, didn’t fix the issue for me. (Its a 3/32 if that matters). I’m new to this device.
You rooted? What was the output of the commands?
Also, how do you know that this is the exact fix you need?
I am rooted, and I’ have no clue if this is the exact fix I need. I do know one thing: After upgrading to 1.1.1 from stock, my speaker didn’t work - and, unless I’m very much mistaken, this software claims to correct that issue. The output from both approaches made it seem like everything worked, except that after a reboot, there was still no sound.
Sorry, just have to check with all this f21 mess
This
The output of the commands
C:\Users\sh741\AppData\Local\Temp\RarSFX1>adb push aw87xxx_acf.bin /data/local/tmp
aw87xxx_acf.bin: 1 file pushed, 0 skipped. 0.3 MB/s (850 bytes in 0.003s)
C:\Users\sh741\AppData\Local\Temp\RarSFX1>adb push aw87xxx_acf_aw87359.bin /data/local/tmp
aw87xxx_acf_aw87359.bin: 1 file pushed, 0 skipped. 0.5 MB/s (592 bytes in 0.001s)
C:\Users\sh741\AppData\Local\Temp\RarSFX1>adb push aw87xxx_acf_aw87391.bin /data/local/tmp
aw87xxx_acf_aw87391.bin: 1 file pushed, 0 skipped. 0.6 MB/s (818 bytes in 0.001s)
C:\Users\sh741\AppData\Local\Temp\RarSFX1>adb push push.sh /data/local/tmp
push.sh: 1 file pushed, 0 skipped. 0.5 MB/s (594 bytes in 0.001s)
C:\Users\sh741\AppData\Local\Temp\RarSFX1>adb shell su -c sh /data/local/tmp/push.sh
-
mount -o remount,rw /vendor
-
cp /data/local/tmp/aw87xxx_acf.bin /vendor/firmware/aw87xxx_acf.bin
-
chown root:root /vendor/firmware/aw87xxx_acf.bin
-
chmod 0644 /vendor/firmware/aw87xxx_acf.bin
-
restorecon -v /vendor/firmware/aw87xxx_acf.bin
SELinux: Loaded file_contexts -
cp /data/local/tmp/aw87xxx_acf_aw87359.bin /vendor/firmware/aw87xxx_acf_aw87359.bin
-
chown root:root /vendor/firmware/aw87xxx_acf_aw87359.bin
-
chmod 0644 /vendor/firmware/aw87xxx_acf_aw87359.bin
-
restorecon -v /vendor/firmware/aw87xxx_acf_aw87359.bin
SELinux: Loaded file_contexts -
cp /data/local/tmp/aw87xxx_acf_aw87391.bin /vendor/firmware/aw87xxx_acf_aw87391.bin
-
chown root:root /vendor/firmware/aw87xxx_acf_aw87391.bin
-
chmod 0644 /vendor/firmware/aw87xxx_acf_aw87391.bin
-
restorecon -v /vendor/firmware/aw87xxx_acf_aw87391.bin
SELinux: Loaded file_contexts -
mount -o remount,ro /vendor
-
ls -lZ /vendor/firmware/aw87xxx_acf.bin /vendor/firmware/aw87xxx_acf_aw87359.bin /vendor/firmware/aw87xxx_acf_aw87391.bin /vendor/firmware/aw87xxx_pid_59_fm_0.bin /vendor/firmware/aw87xxx_pid_59_fm_1.bin /vendor/firmware/aw87xxx_pid_59_music_0.bin /vendor/firmware/aw87xxx_pid_59_music_1.bin /vendor/firmware/aw87xxx_pid_59_off_0.bin /vendor/firmware/aw87xxx_pid_59_off_1.bin /vendor/firmware/aw87xxx_pid_59_rcv_0.bin /vendor/firmware/aw87xxx_pid_59_rcv_1.bin /vendor/firmware/aw87xxx_pid_59_voice_0.bin /vendor/firmware/aw87xxx_pid_59_voice_1.bin /vendor/firmware/aw87xxx_vmax_0.bin /vendor/firmware/aw87xxx_vmax_1.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 850 2022-01-14 06:28 /vendor/firmware/aw87xxx_acf.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 592 2022-01-14 06:28 /vendor/firmware/aw87xxx_acf_aw87359.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 818 2022-01-14 06:28 /vendor/firmware/aw87xxx_acf_aw87391.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_fm_0.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_fm_1.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_music_0.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_music_1.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 45 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_off_0.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 45 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_off_1.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_rcv_0.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_rcv_1.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_voice_0.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 44 2022-01-14 03:35 /vendor/firmware/aw87xxx_pid_59_voice_1.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 48 2022-01-14 03:35 /vendor/firmware/aw87xxx_vmax_0.bin
-rw-r–r-- 1 root root u:object_r:vendor_file:s0 48 2022-01-14 03:35 /vendor/firmware/aw87xxx_vmax_1.bin -
echo
-
echo '[] Review the above output.’
[] Review the above output. -
echo '[] Press ENTER to reboot, or CTRL+C to cancel.’
[] Press ENTER to reboot, or CTRL+C to cancel. -
read _
@ars18 - thanks for all your work on this. Question before I rebuild and reflash ROMs. The behavior I’m seeing on my phone is a bit odd and I think inconsistent. Can you let me know if this behavior is common symptom that this solution resolves?
I have an F21 Pro (almost) working on T-Mobile in USA. The primary issue I had and have recently resolved is IMS Registration. I can now send and receive calls in addition to data on US Bands. The only thing that is not currenlty working is my telephone audio.
I flashed the A.I.V. ROM and and currently running DumberOS, which seems to be working great, except for the fact that when I make or receive a call with either wired headphones or using the phone ear speaker or loutspeaker, I cannot hear people. What is strange is that I can call and hear people via bluetooth. I can also hear music when I have wired headphones plugged in, but I cannot hear voice when I have wired headphones plugged in.
Does any of this sound like it needs the speaker fix?
I think so, but just wanted to hear your thoughts before I go messing with what has taken a long time to get up and going
Thanks in advance!!
Do you have any sound at all from the speaker in any way?
Nothing at all from speaker. Only audio when connected to bluetooth (voice/media) or hardwire headphone (media only).
Then yeah. Give the guide a go.
But, as you have dumberos and want to keep it that way, ask questions before you do anything.
Are you rooted? Easiest way. Can even just temp root for this. Don’t know though how having higher Android system version will affect read/write though.
Also… Did the sound work on A.I.V ROM? I’m assuming not, but if yes, then I don’t know what the issue is.
1 Like
So…this worked! Using the super you linked reactivated my speaker audio. Ii was so happy!
I did run into an issue.
For some reason this super does not allowed me to register IMS.
So, my current state is:
- Speaker working
- LTE data working
- No voice (no IMS registration)
I think I have identified that PHH Treble settings in other ROMs allow for IMS registration.
is it possible to add those IMS settings into this ROM? How would I go about doing that?
Thx!!
1 Like
I don’t know what you flashed, unless you just mean the dumberos gsi.
I don’t really have any experience with dumberos with a SIM card installed.
I do believe your issue is discussed on the dumberos discord.

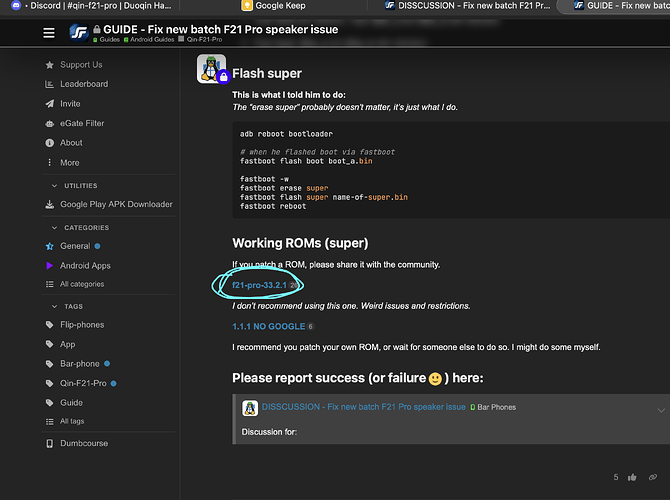

Sorry - realized I wasn’t clear about what super I flashed. I flashed the F21-pro-33.2.1 super that you linked. Audio worked great. Only issue I’m running into is that I don’t have IMS registered. Seems there is something about how the IMS registration is set up in the A.I.V ROM and LineageOS Roms that seems to successfully trigger IMS registration. Any insights greatly appreciated. Also understand you don’t have this phone to experiment with, so totally understand if not any clear answers. Thx!!
Do you have a backup of what was working before? You can just patch that to fix the speaker.
Edit: I understand now what you’re saying, but I still in general really do not recommend 33.2.1, rather to patch any existing ROM u like.
As far as ims on dumberos, I have no idea.
1 Like

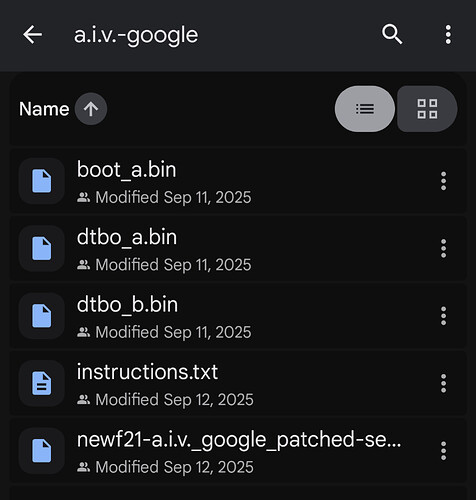

Got it. Thx! And yes, I do have a copy of the ROM that is working here:
But I am such a noob that I am having difficulty re-packing the Super with audio fix.
Do you have any tools that you recommend? Do I have to do this in Linux or any more automated solutions?
Thx much!
So you want full A.I.V ROM, no dumberos?
You can patch fully on device with root, if you don’t want to stay rooted you can unroot after.
Edit - seems like I already did everything
Has all needed partitions
1 Like
Oh wow! I was looking right past that super! I have it flashing now. Thank you!
One question out of curiosity…I noticed that most F21 supers are 4GB. I don’t think I considered that speaker fix super because it is only 2GB.
How can some supers be so much smaller than others?
thx!!
Raw vs sparse
Make sure you flash all not just super, unless you already did the other ones
Hmmm. Ran into an issue. Maybe I did that wrong. I flashed the updated AIV super using the command “mtk w super…”
And after flashing it just boots into fastboot mode.
Am I missing a step (or more)?
Flash with fastboot it’s not raw
1 Like
wow Wow WOW!
You just resolved something that has been plaguing me for weeks!!!
Thank you!
TMobile (check)
USA Bands (check)
LTE (check)
Voice (check)
Audio/speaker (CHECK!!!)
Where do you accept $ donations?
Thanks again and have a GREAT night!
